LDHEB-6100 solar panel battery

LDHEB-6100 solar panel battery

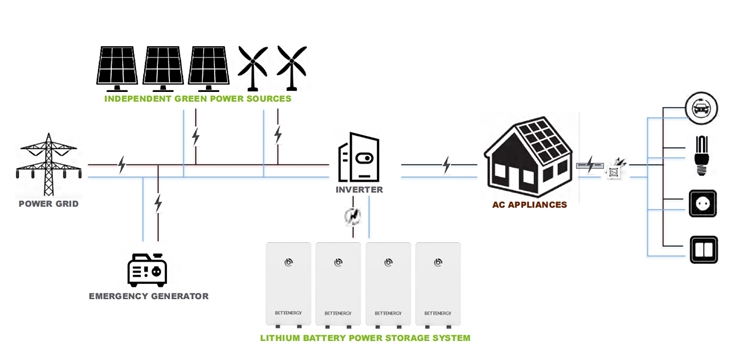

Super Solar's LDHEB-6100 solar panel battery is getting more and more popular recently among those who wants to have their own solar systems. As solar energy is not always generated at the time energy is needed, the solar energy batteries can help match supply and demand.

  • Brand:

    Super Solar
  • Item No.:

    LDHEB-6100
  • Product origin:

    China
  • Min order:

    10
  • Product weight:

    26300g
  • Shipping port:

    Fujian Xiamen
  • Lead Time:

    30-45days
  • Product Details

  • Project Case

Product Model
Powerbox-4400LV
Powerbox-5100LV
Powerbox-6100LV
Rated Voltage
51.2V
5.12V
51.2V
Rated Energy
4.4KWH
5.1Kwh
6.1Kwh
Operating voltage range
44.8-58.4V
46.4-58.4V
44.8-58.4V
Cell material
Lifep04
Lifep04
Lifep04
Continuous charging current
40A
50A
60A
Continuous discharge current
80A
80A
80A
Dimensions
434*145*450mm
434*145*450mm
434*183*450mm
Weight
46KG
46KG
60KG
IP rating
IP20
IP20
IP20
Storage temperature range
0*C-45*C
0*C-45*C
0*C-45*C
Number of cycles
>5000(80%dod,25*C)
>5000(80%dod,25*C)
>5000(80%dod,25*C)
Cycle life
10 years
10 years
10 years
Communication mode
RS232-RS485-CAN
Powerbox-4400LV
Powerbox-4400LV
Warranty
5 years
5 years
5 years
