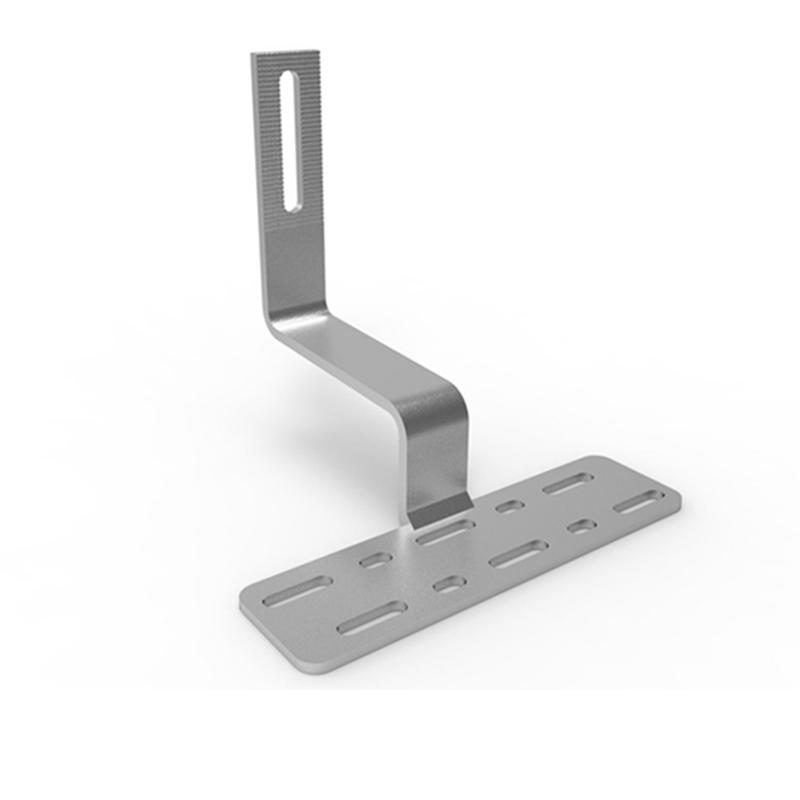

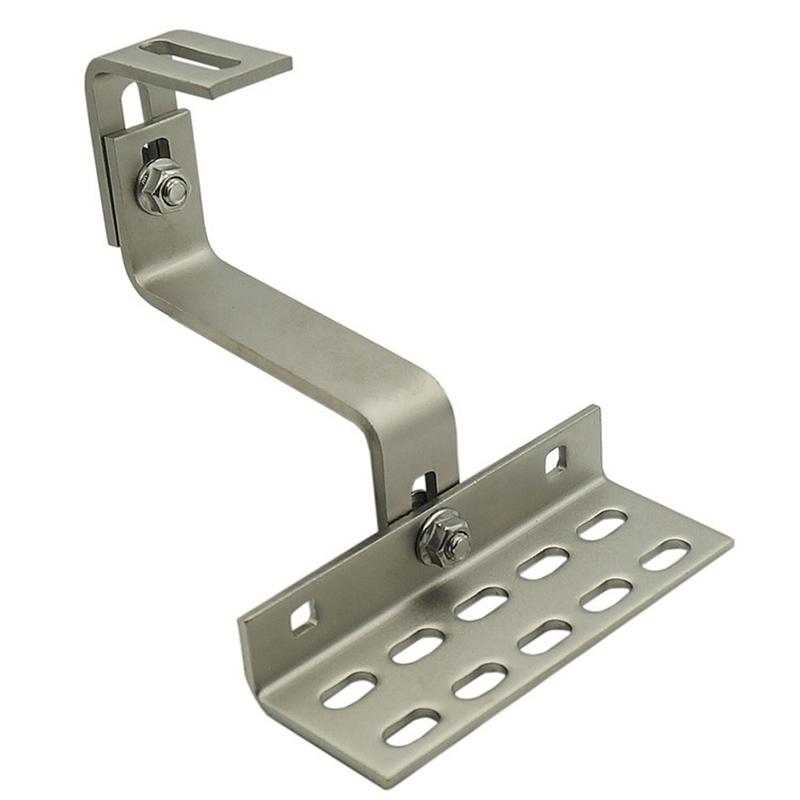

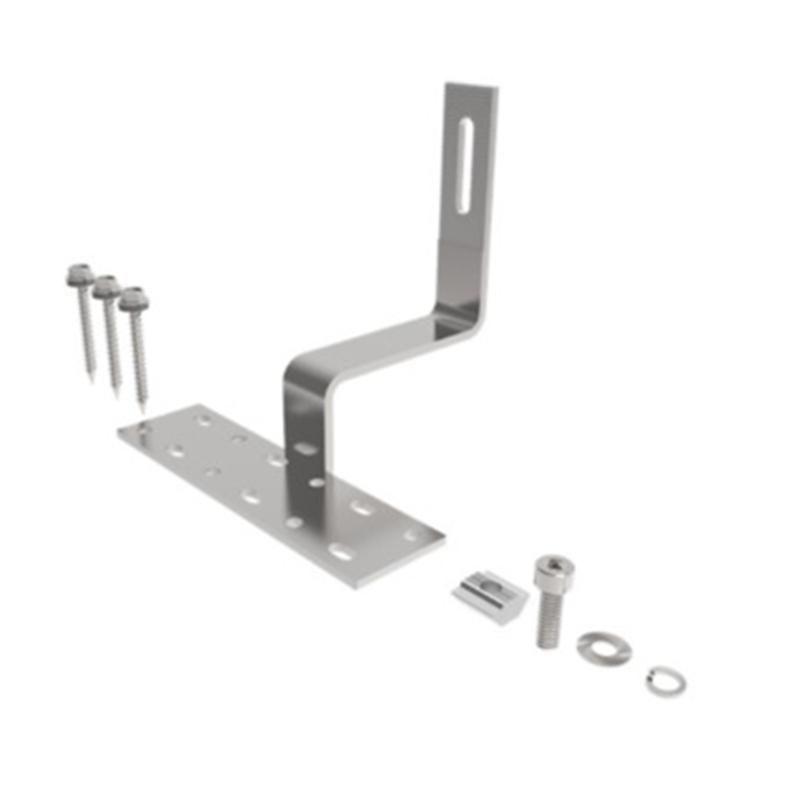

PV solar panel roof hooks brackets for tile roof

PV solar panel roof hooks brackets for tile roof

Super Solar provides a wide range of solar roof hook for tile roof. You can find suitable roof hooks for flat tile roof, clay tile roof, ceramic tile roof, concrete tile roof, and slate roof solar mounts.

  • Brand:

    Super Solar
  • Item No.:

    SS-M-RT-12001
  • Product origin:

    China
  • Shipping port:

    Fujian Xiamen
  • Lead Time:

    30-45days
  • Product Details

  • Project Case

Product Description

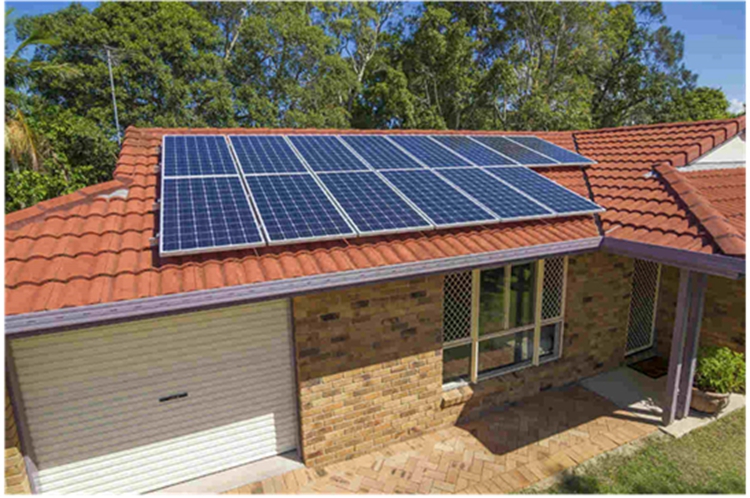

The pitched roof racking system is designed with great flexibility and would be used for all kind of roofs and tiles, like glazed tile, ceramic tile, roman tile, scale tile, etc. This racking system can fit with frame or frameless solar panels of any size. And it's commonly used for residential and commercial.Thanks to the advanced module design, it can achieve easy-installation.

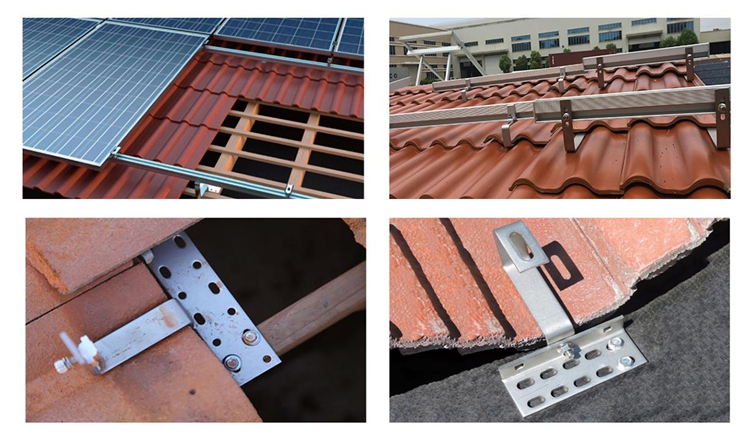

Installation


Technical datasheet



Installation site Pitched roof
Tile angle Flushed to roof
Building height Below 20m
Max wind load 42 m/s
Max snow load 0.5 KN/M2
Material Al6005-T5&SUS304
Color Natural
Treatment Anodizing
Warranty 12 years
Service life 25 years


Features:

1.Module design, easy installation.

2.Stable structure, mounted securely.

3.Aluminium alloy and stainless steel, long service life.

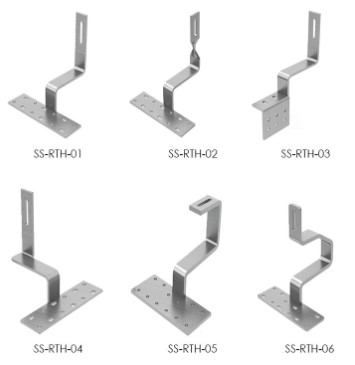

4.Various hook designs, fit with all kinds of tiles.

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

related products
Solar Panel Mounting Rails For Trapezoid RIB Roof
solar panel mounting rails for trapezoid RIB roof

Super Solar offers many different solar panel mounting rails to choose from. If you can give us the necessary technical information about your project, our engineer will suggest the most suitable roof rails to you. All rails are made of aluminum alloy, which are not only nice-looking, but also anti-corrosion.

Solar penal clamp
Solar Panel Mounting black anodized panel clamp

Super Solar also offers black anodized panel clamp, including U shaped mid clamp, solid mid clamp, and end clamp. The black dye surface fits the black solar panels very well, making the whole solar energy system look nice.

solar panel z brackets
solar panel mounting z brackets

Super Solar's solar panel z brackets are suitable for RV roofs or some non-inhabited dwellings like sheds or garages. When installing, just connect the holes on the frame of the module to the Z shaped bracket with bolts, and then install and fix the solar module with the z bracket fixed on all four sides.

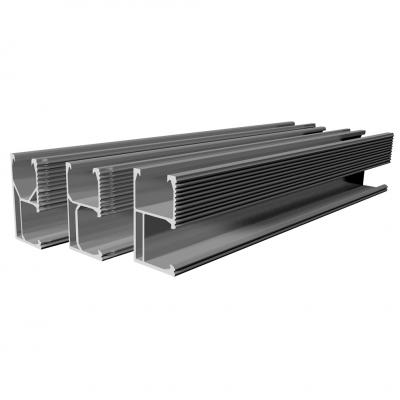

solar mounting rails
