Solar Panel Mounting Rails Aluminium PV Rail for Sale

Solar Panel Mounting Rails Aluminium PV Rail for Sale

Supersolar aluminum solar rails for the frame supports the solar panel.

Easy Installation and heavy load. It is widely used for both roof and ground mounting system. Ribs on the side make the connection of hooks and rails to be stronger. Both sides of rails slot can be performed.


  • Brand:

    Super Solar
  • Item No.:

    roof mounting rail
  • Price:

    $1/meter
  • Product origin:

    China
  • Color:

    Natural
  • Goods_stock:

    50000
  • Min order:

    1000
  • Shipping port:

    Fujian Xiamen
  • Product Details

  • Project Case

Solar Panel Mounting Rails Aluminium PV Rail for Sale

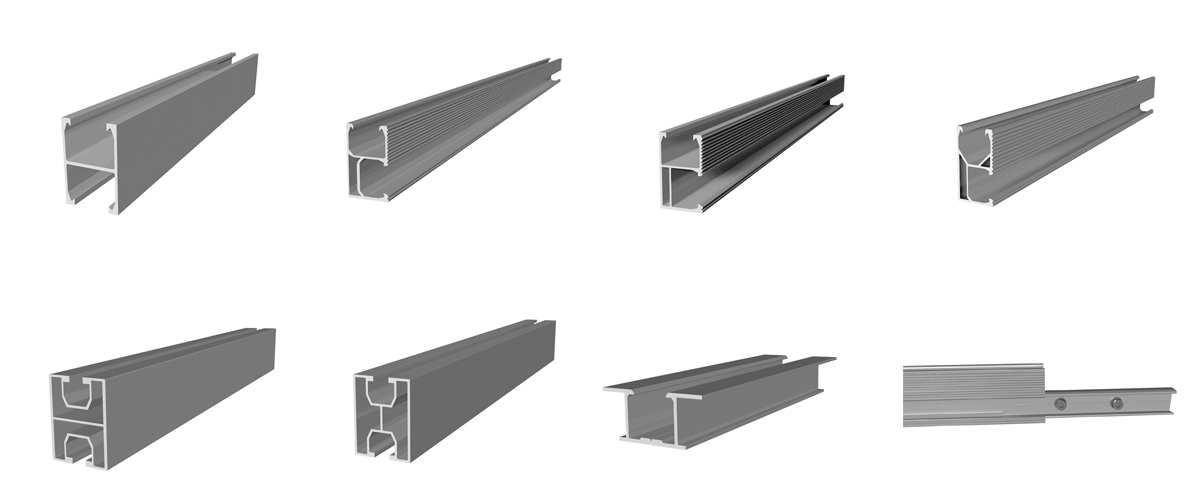

Part name G-shaped rail
H-shaped rail
Square rail
Material AL6005-T5
Length Customizable within 6200mm
Connecting splice Available
Installation site Roof and ground solar mounting system

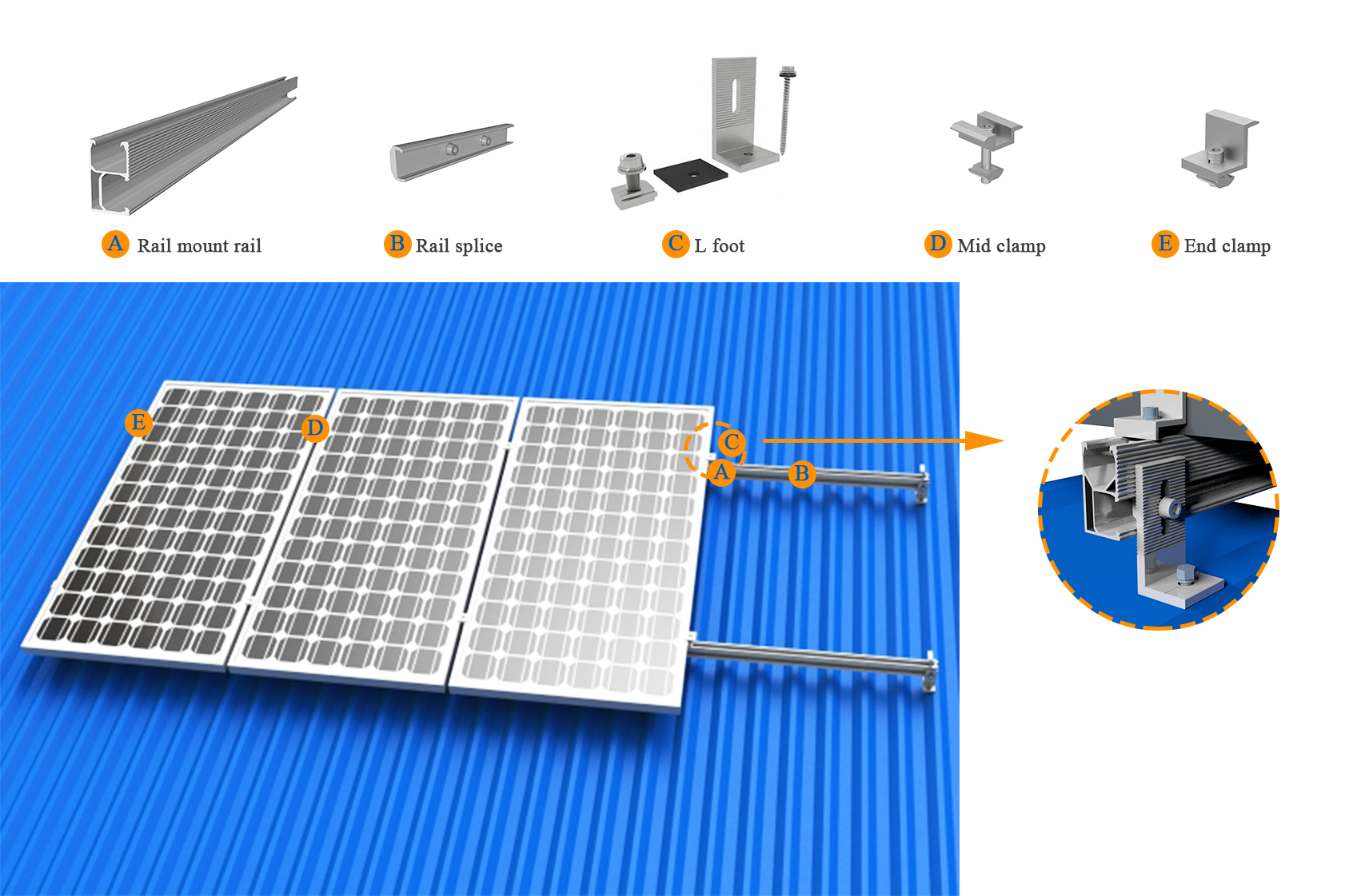

SUPERSOLAR Rails System Overview




SUPERSOLAR rails solution for variants of roofs

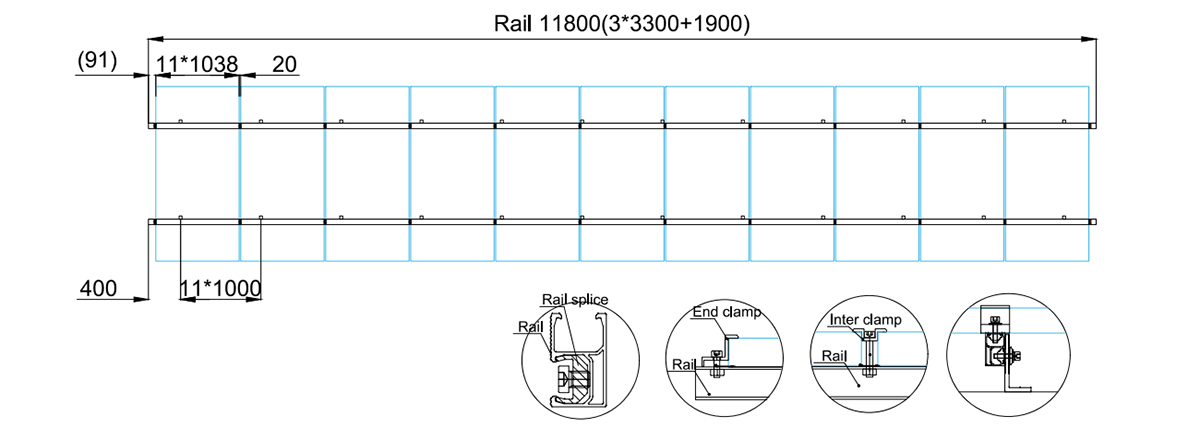

Simple,Fast and Safe PV Planning

Super Solar offers many different solar panel mounting rails to choose from.

It is widely used for both roof and ground mounting system.

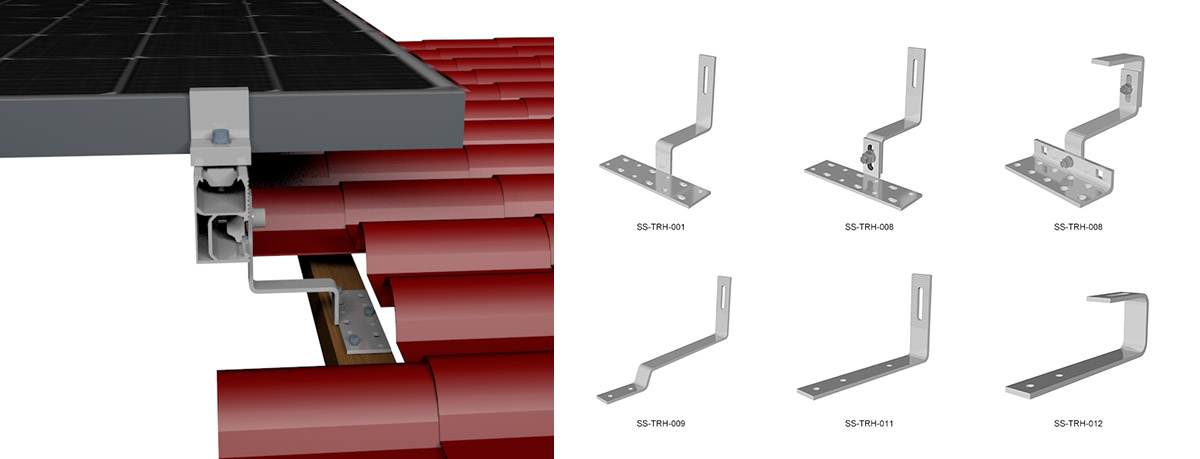

 Roof tiles and roof stones
We offer roof hooks and rails for almost all clay tiles, pantiles, plain tiles and concrete roof tiles.

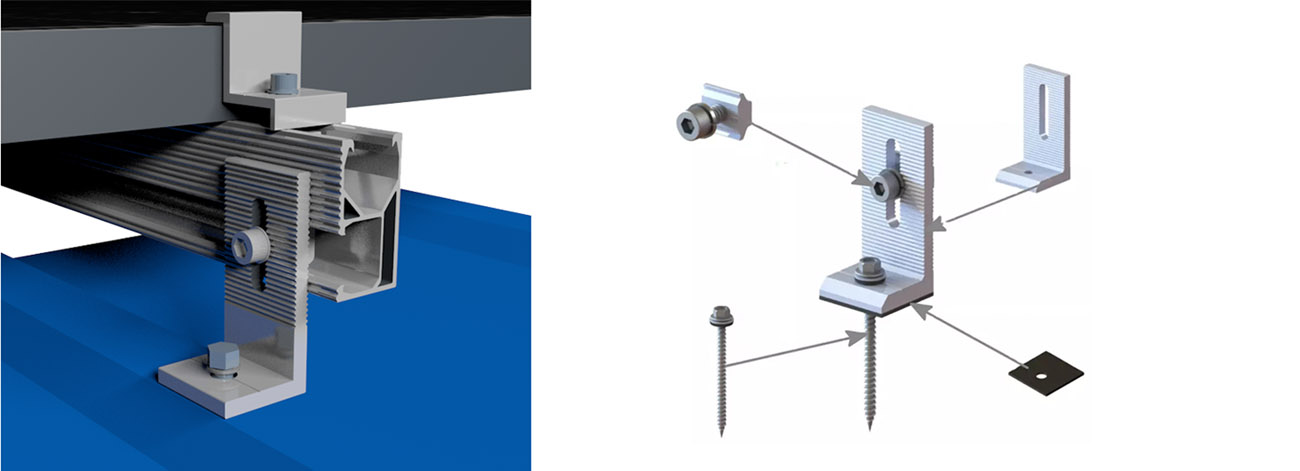

 Corrugated fiber cement and corrugated sheet metal

For corrugated roofing, such as eternit, we offer hanger bolts and solar fasteners.

These are equipped with a seal. The hanger bolts are used for wooden substructures. They are equipped with an adapter plate to which the rail is attached pre-assembled, of course. We offer different lengths as well as different diameters (M10/M12). For a steel substructure, we use solar fasteners. These are equipped with a hardened drill point.

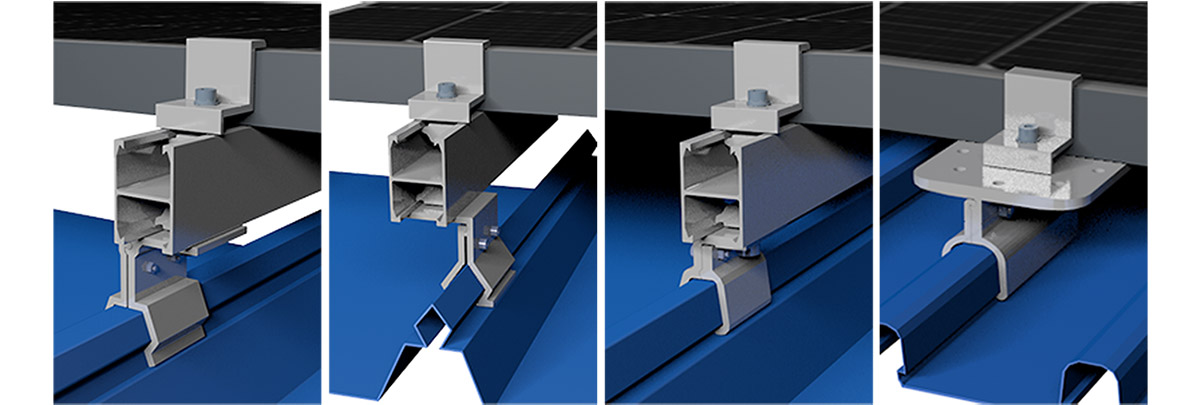

 Trapezoidal sheet metal roofing
For the area of trapezoidal sheet metal and sandwich panel roofing, we have various solar fasteners in our range.
These enable the PV mounting system to be fixed in the steel or wooden substructure. The matching calottes in various sizes and colours are also included in the scope of delivery.

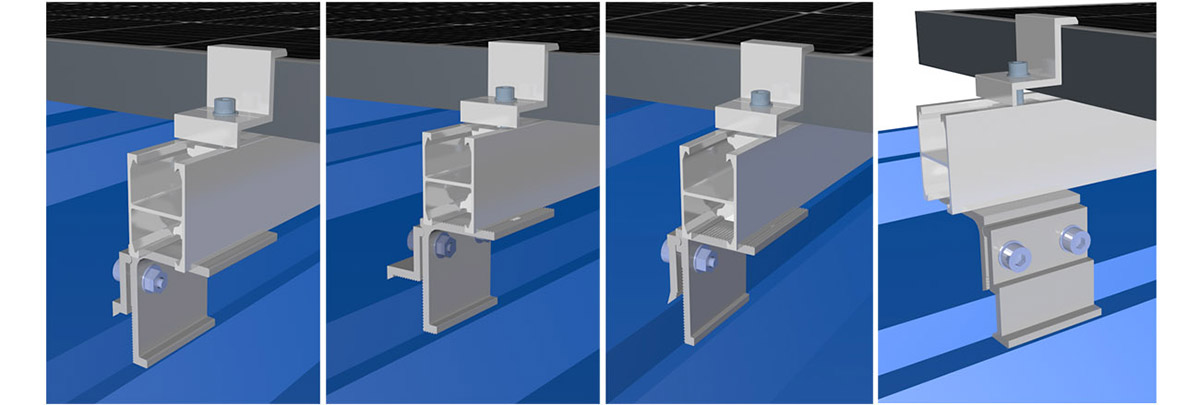

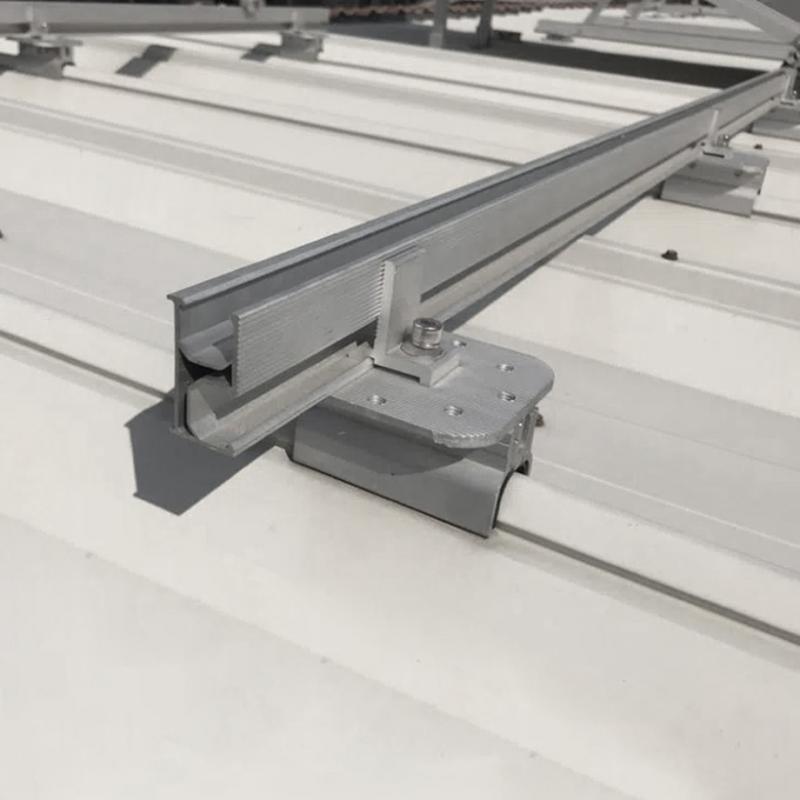

 Metal seam roofing

We offer various clamps for fastening in the field of sheet metal seam roofing and system roofs.
These enable the PV mounting system to be fixed on almost all of the roof coverings. The following profile types are possible: double standing seam, angled seam, snap seam, metal roof systems (Rib-Roof Evolution, Speed 500, 465, Domitec, Klip-Lok and Klip-Tite).

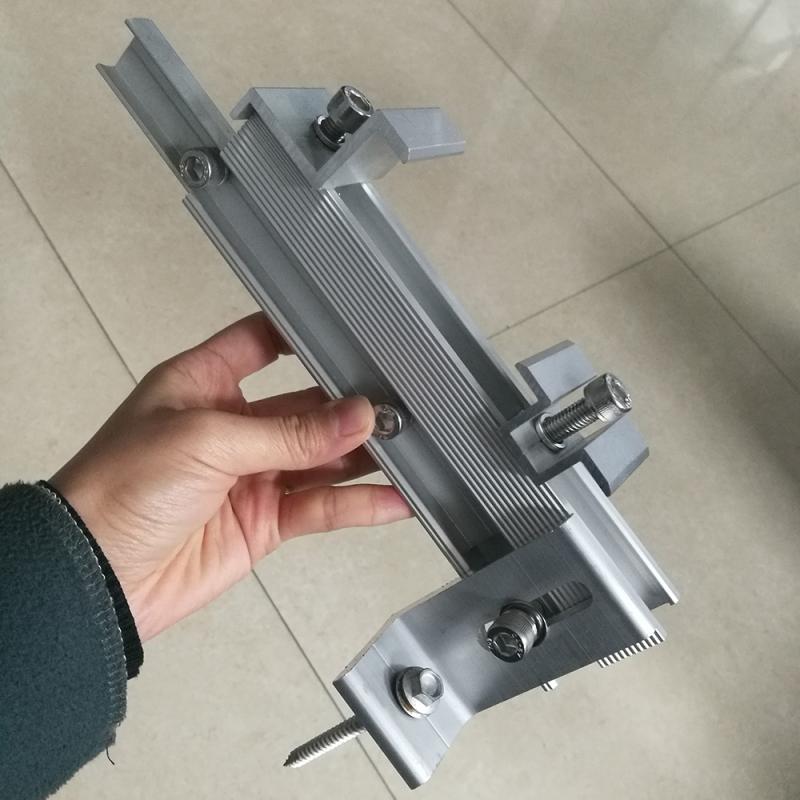

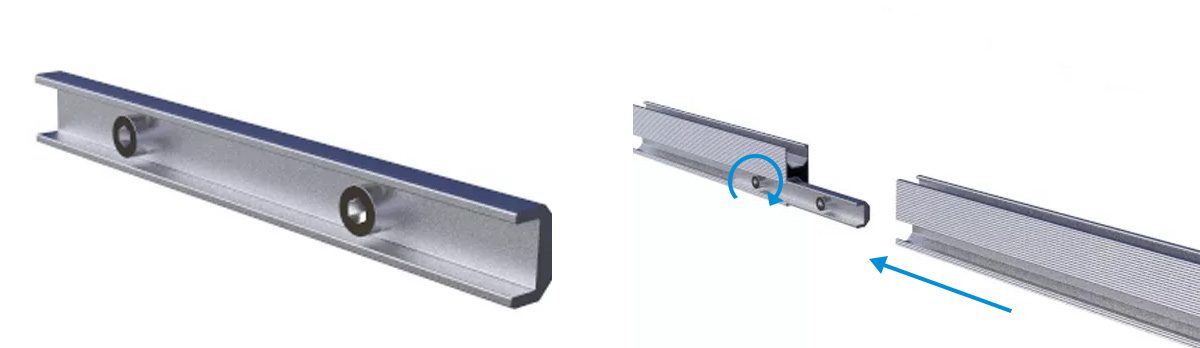

 Rail Splice



Free Project Evaluation


We can help you with new project design support.

Take advantage of SUPERSOLAR 20-year technology experience and let us perform a free evaluation for your project.

Our recommendations will deliver a structurally-sound, cost-effective solution based on two decades of construction experience and testing data.

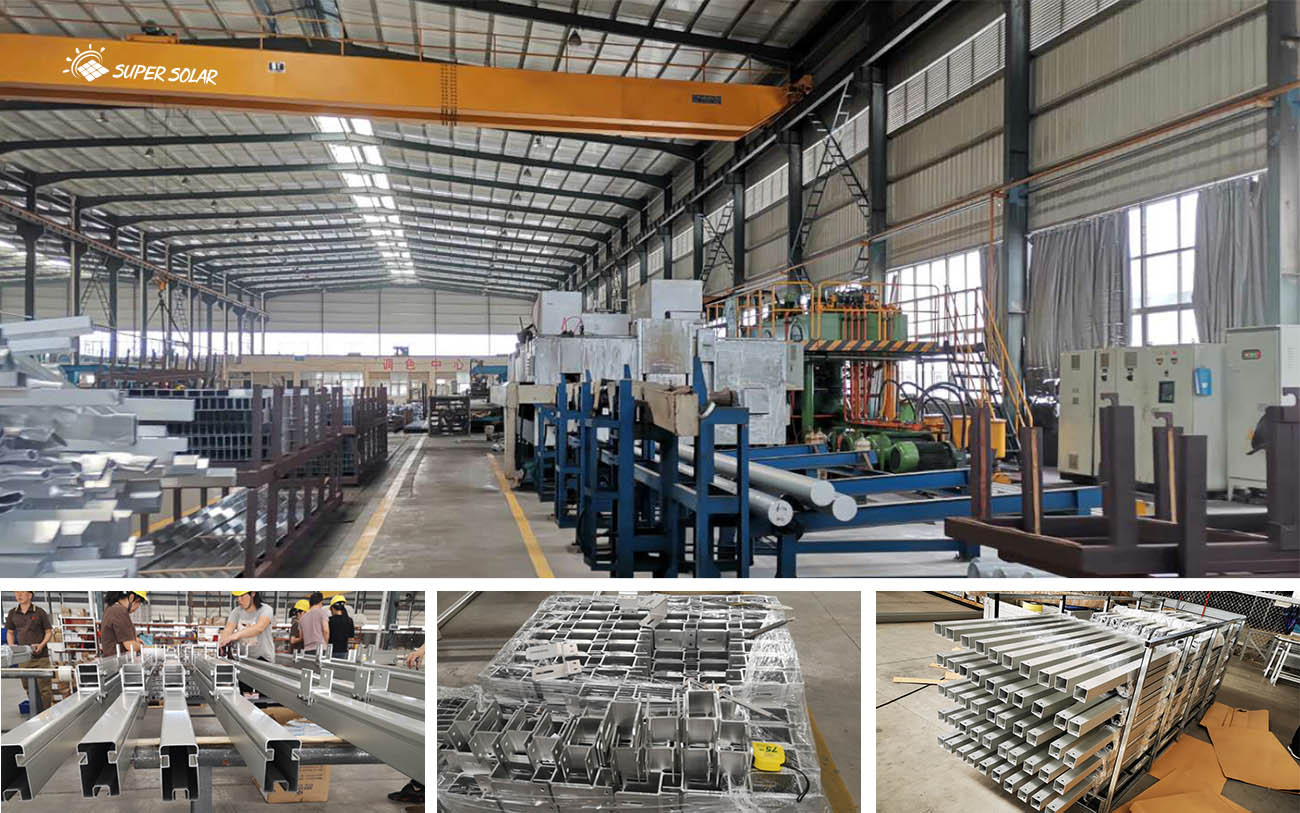

Our Factory and Production



Quality Test

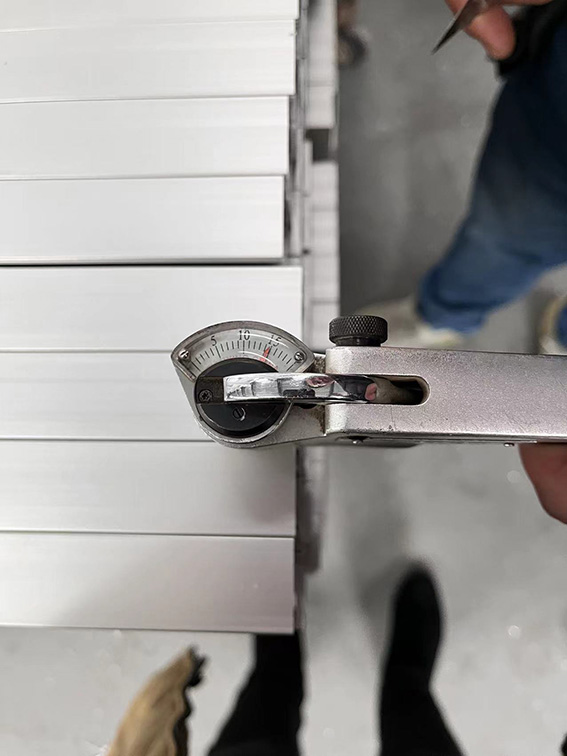

Hardness Testing

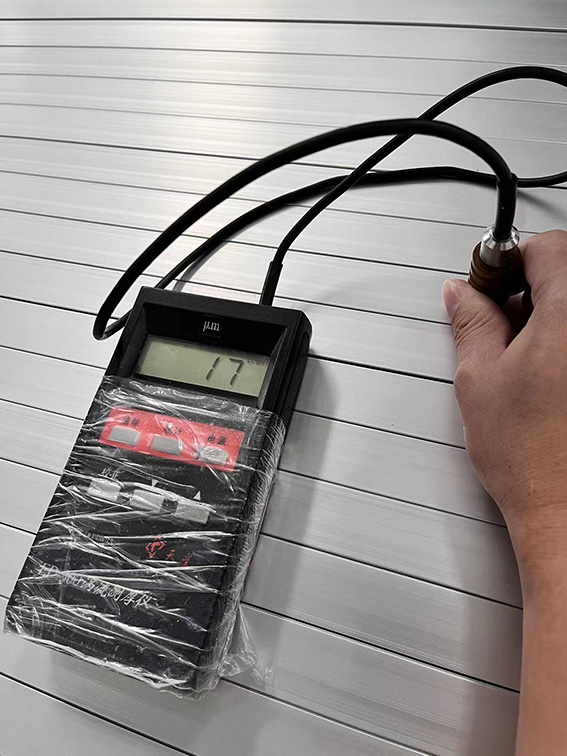

Surface Thickness

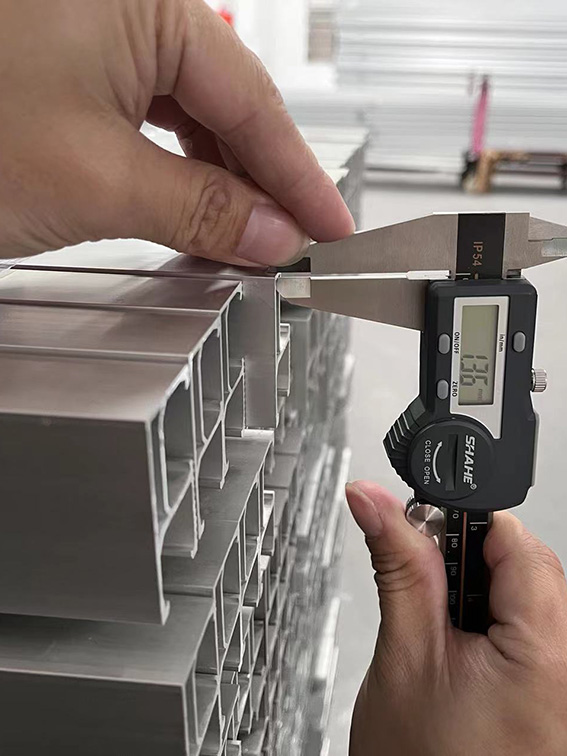

Thickness Measurement

On Slat Roof


On Seam Roof

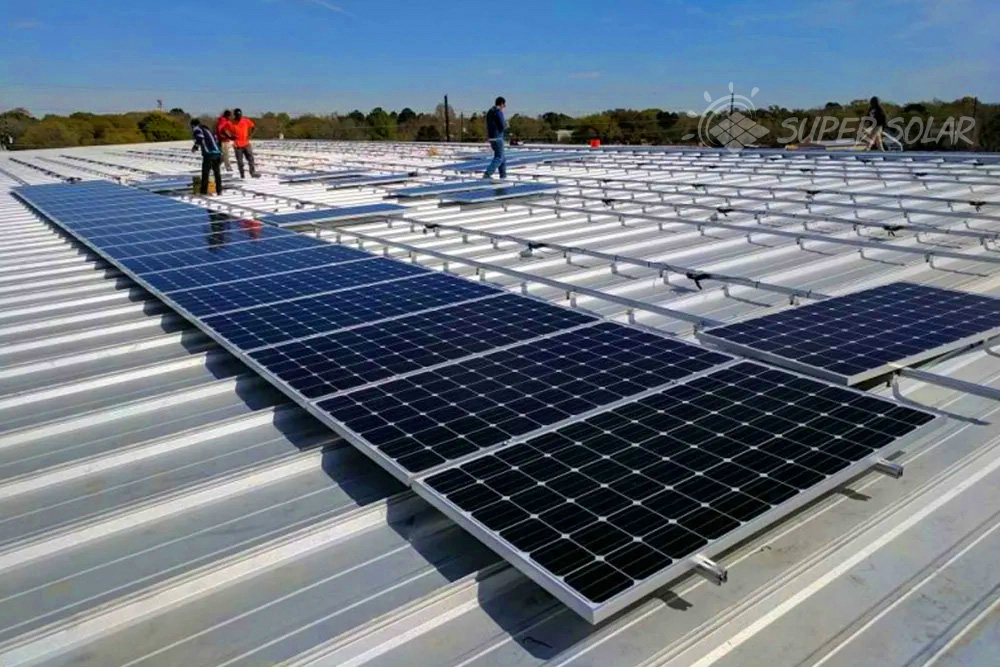

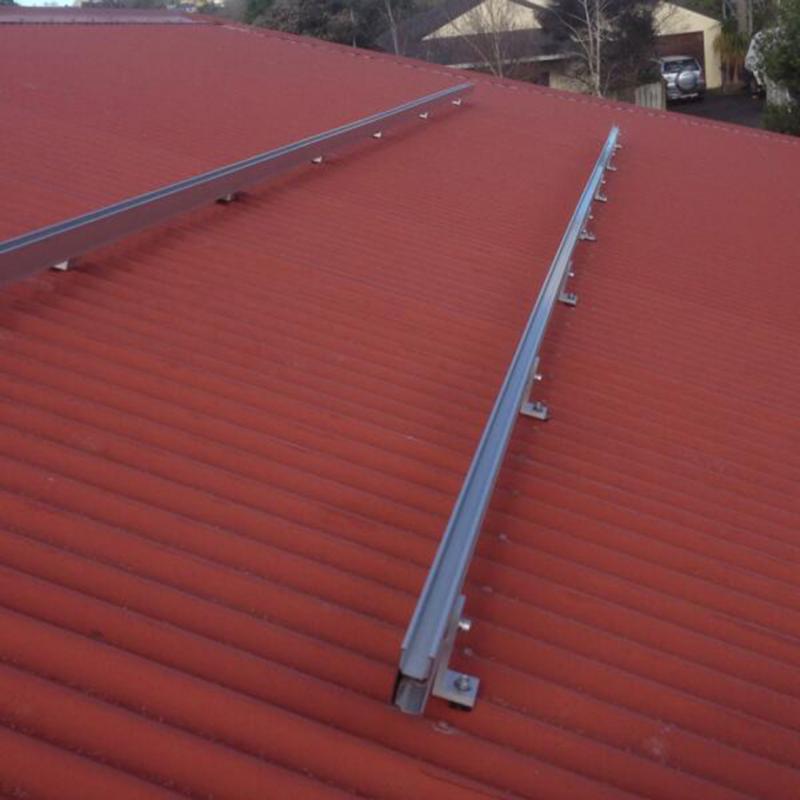

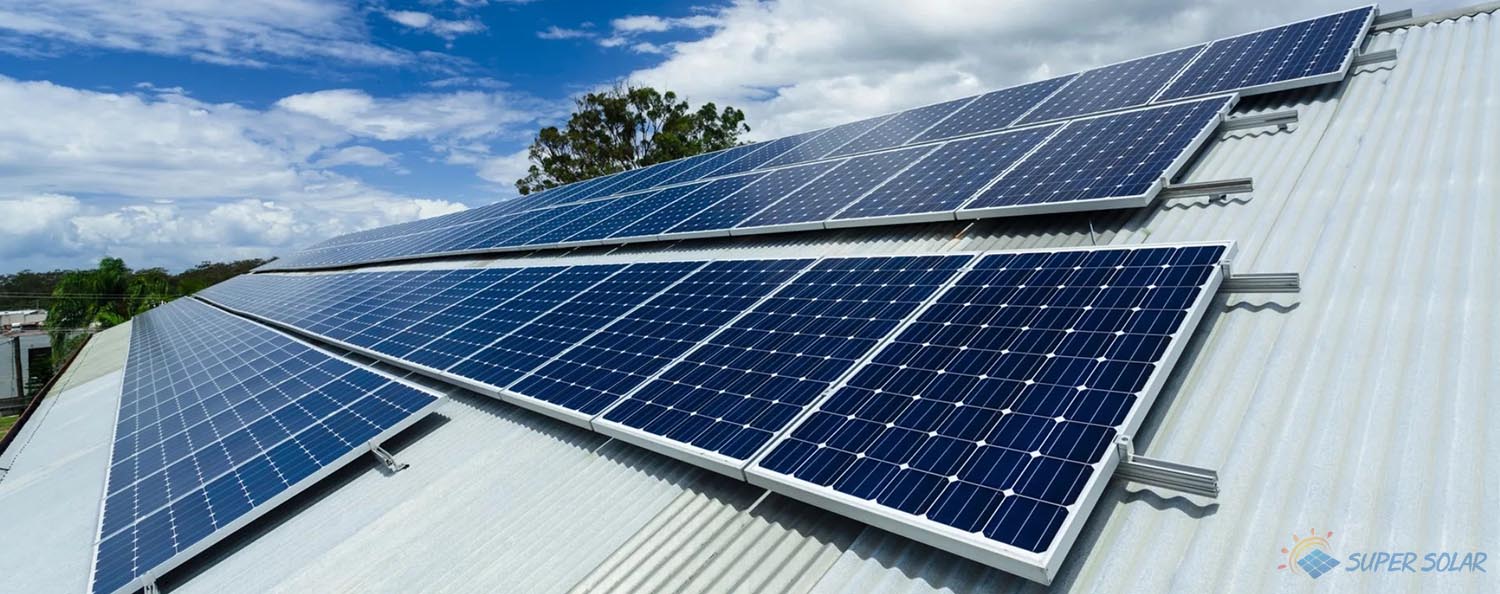

On Metal Roof
