All Black Solar PV Panels Wholesale

Black panels do absorb more heat, especially if the back side is also black. Since higher temperatures lower the power output of a panel, black panels may be very slightly less efficient than the equivalent panel with a silver (clear) frame and white back.

  • Brand:

    Super Solar
  • Item No.:

    SS-
  • Payment:

    T/T,LC
  • Price:

    $0.3/watt
  • Product origin:

    China
  • Color:

    Black
  • Goods_stock:

    50000
  • Min order:

    4500
  • Product weight:

    21.5g
  • Shipping port:

    Xiamen Port
  • Product Details

  • Project Case

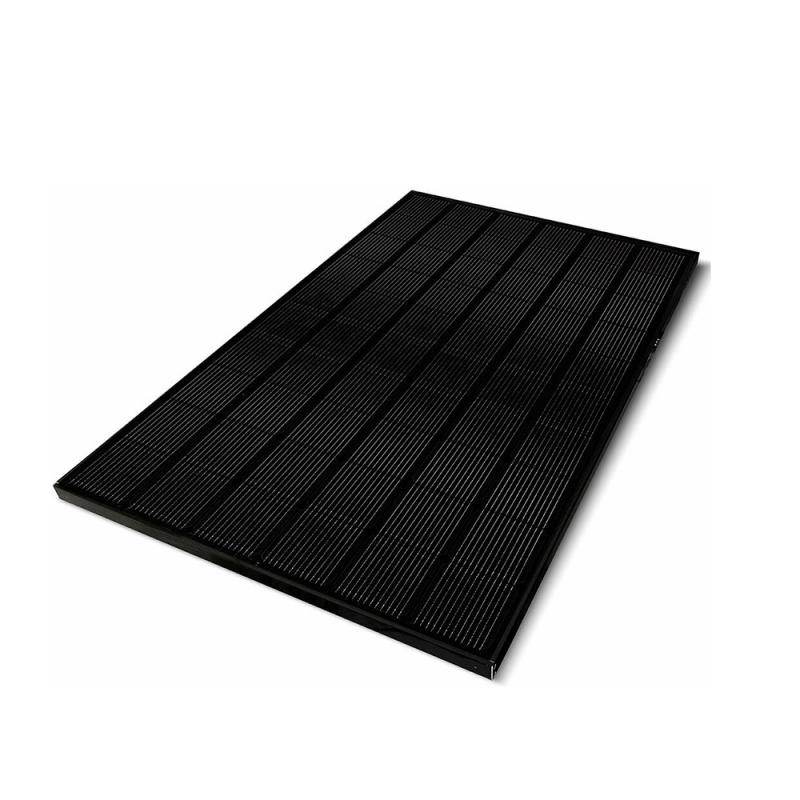

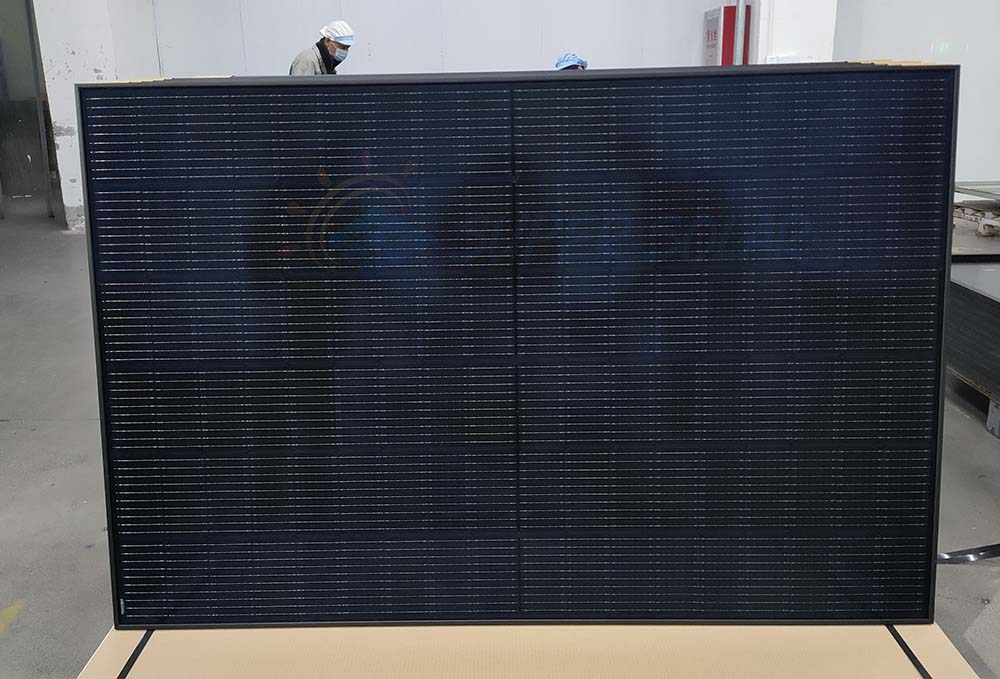

All Black Solar  PV Panels Wholesale

Product Description

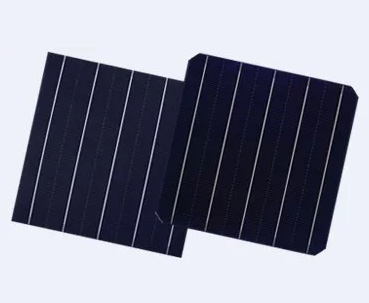

MBB Cell
Higher Output Power
Harsh Environmental Adaptability
New circuit design, lower internal current, lower internal resistance loss.
Module adopts 108 pcs of 182* 182 mm half cells, the maximum power can reach 410W.
Strict salt spray and ammonia corrosion test by TUV Nord.
Load Capacity
Low Light Features
PID Protection
Mechanical load tests including wind load 2400 Pa and snow load 5400 Pa done by TUV Nord.
Higher performance under low light environment.
Ensure the attenuation probability caused by PID phenomenon is minimized.

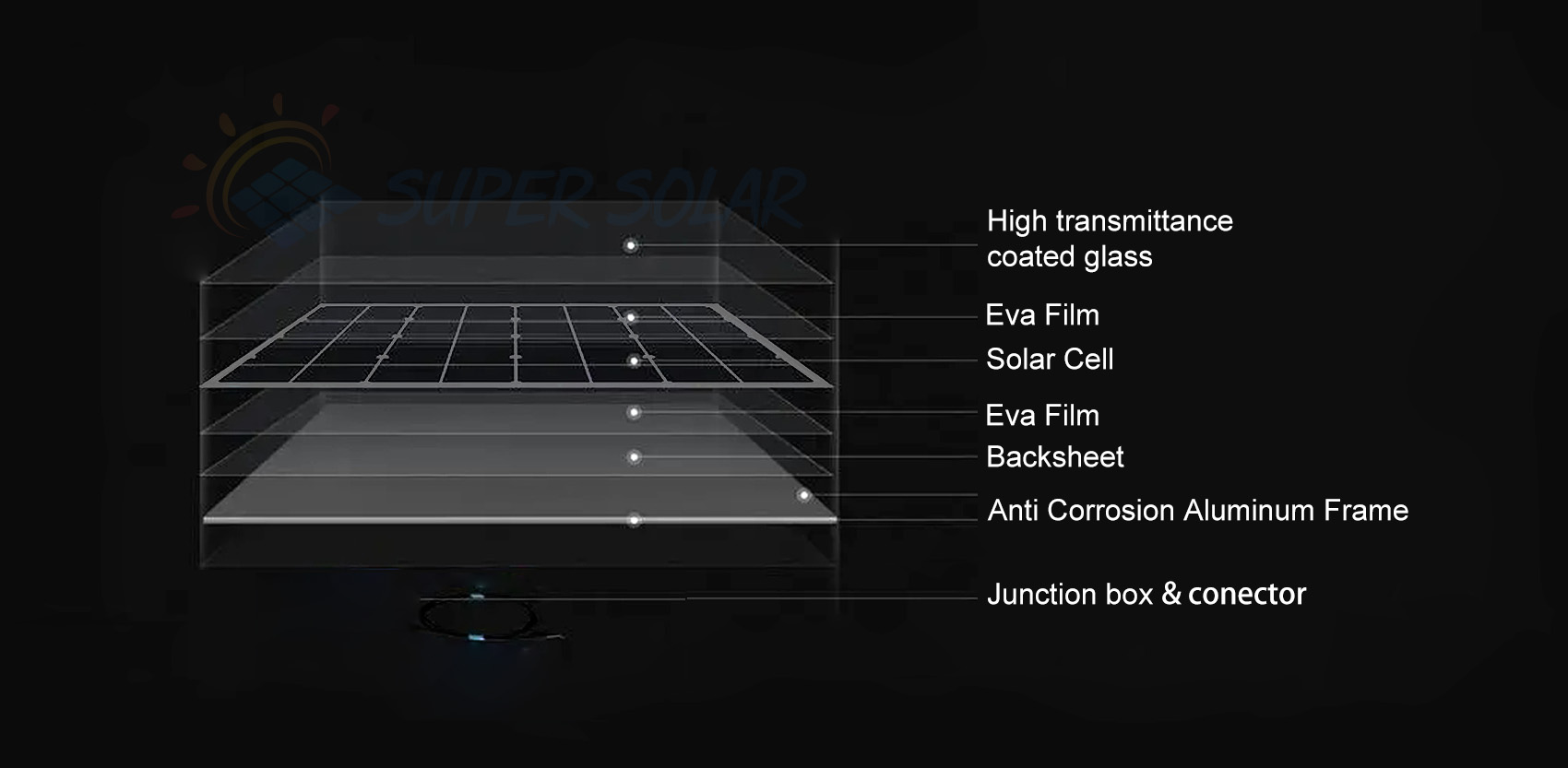

Glass
Solar Cell

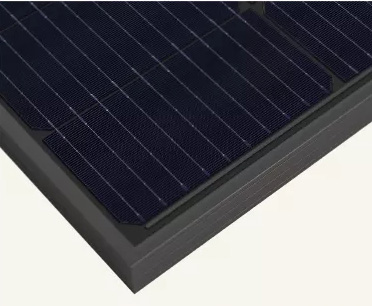

Frame
AR Coating Tempered, Low Iron, Lower Reflection, High Transparency, Anti-Reflective  A Grade/ Perc/ Square Mono/ Half Cell Technology Higher Efciency, Anti PID PVCells  Anodized Aluminum Alloy Frame Black/sliver Optional

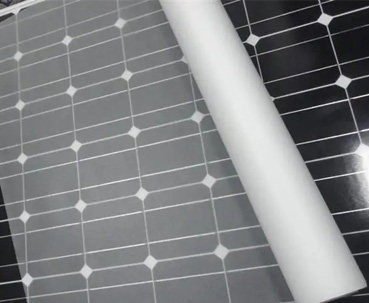

Backsheet

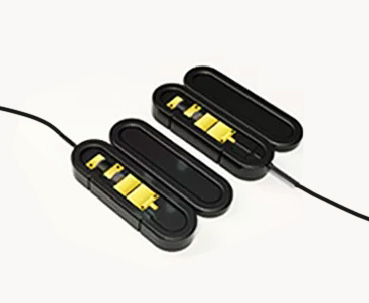

Junction Box

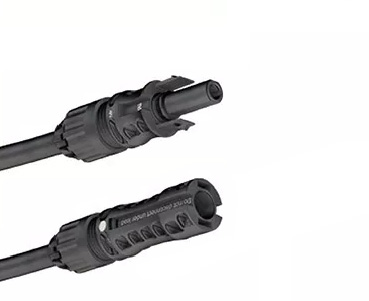

Cable Connector
White or Black optional IP67 Rated Waterproof Junction Box  Photovoltaic Technology Cable 4.0mm2 (Customized Available)

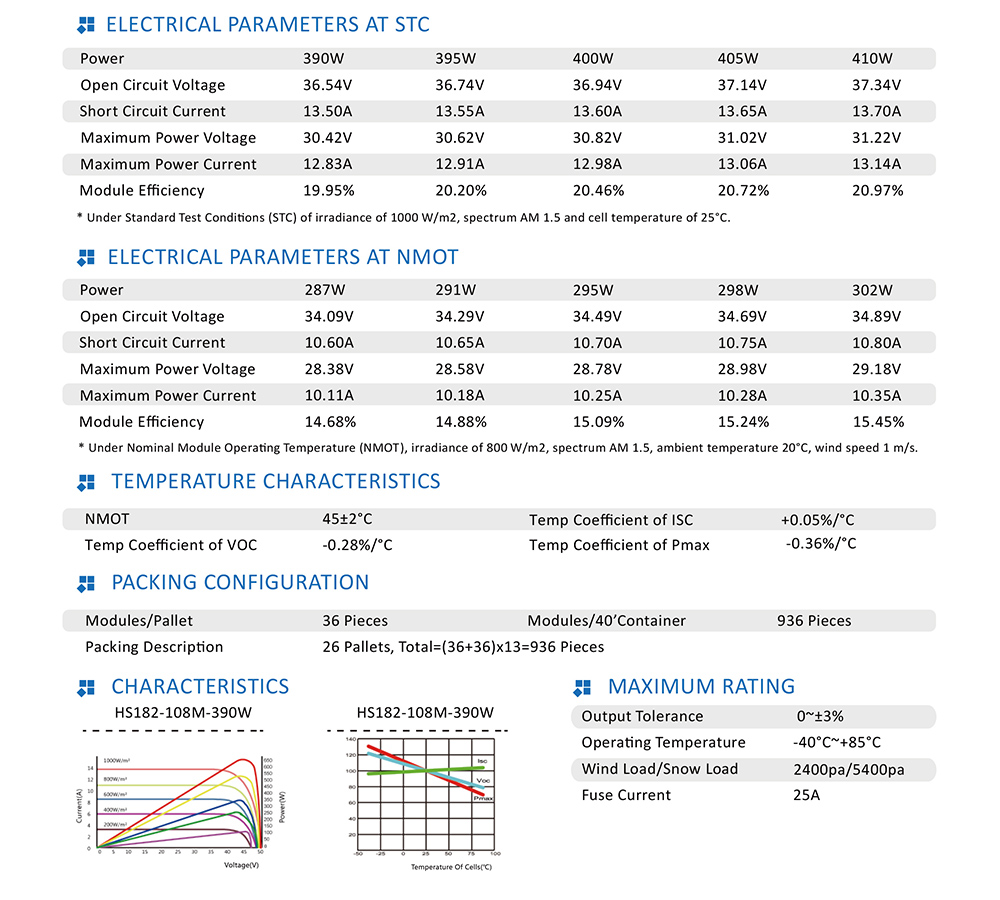

SPECIFICATIONS


Weight
21.5kg

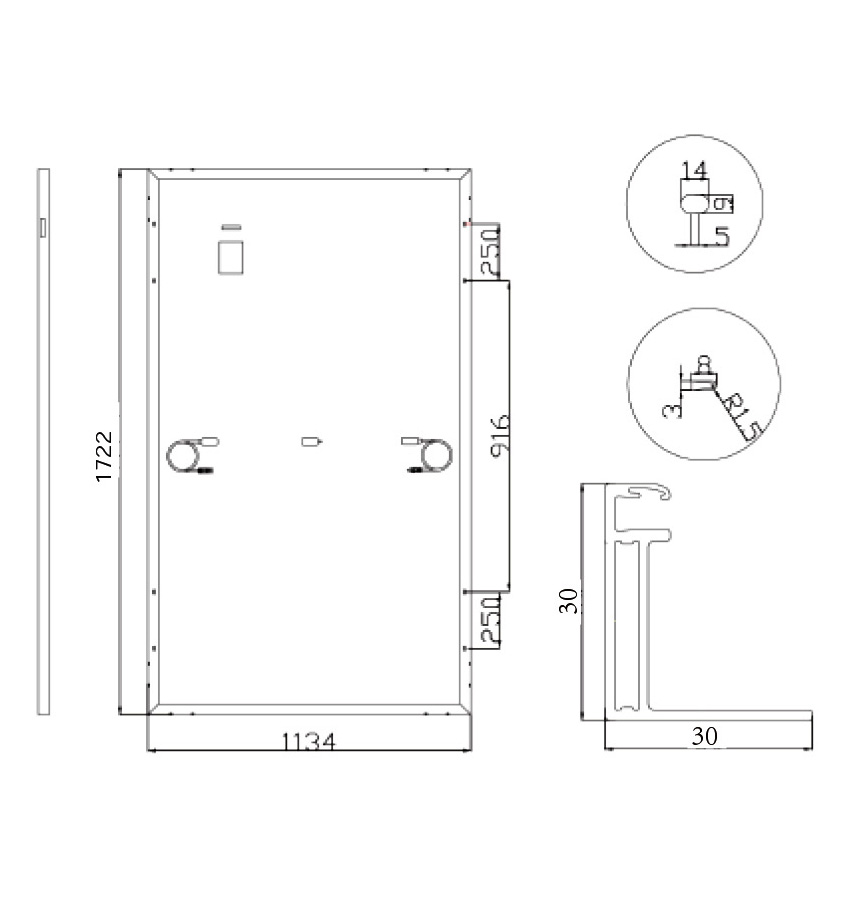

Dimensions
1722mm* 1134mm* 30mm
Cell Dimensions
182* 182mm
Cell Amount
54 *2 pcs
Maximum System Voltage
1500V
Junction Box
IP68
Frame
Aluminum Alloy
Cable
4mm2
Connector
Cable connector
Application Level
Grade A

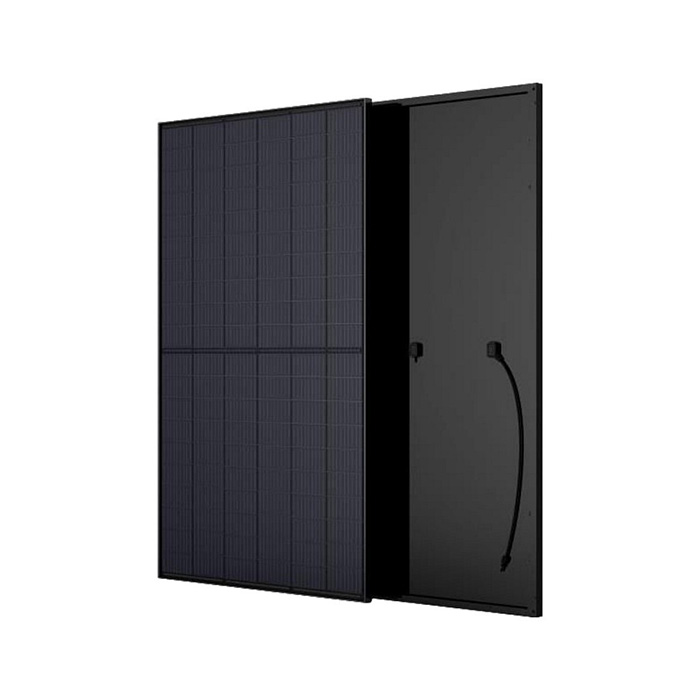

Black panels come in two types

BoW

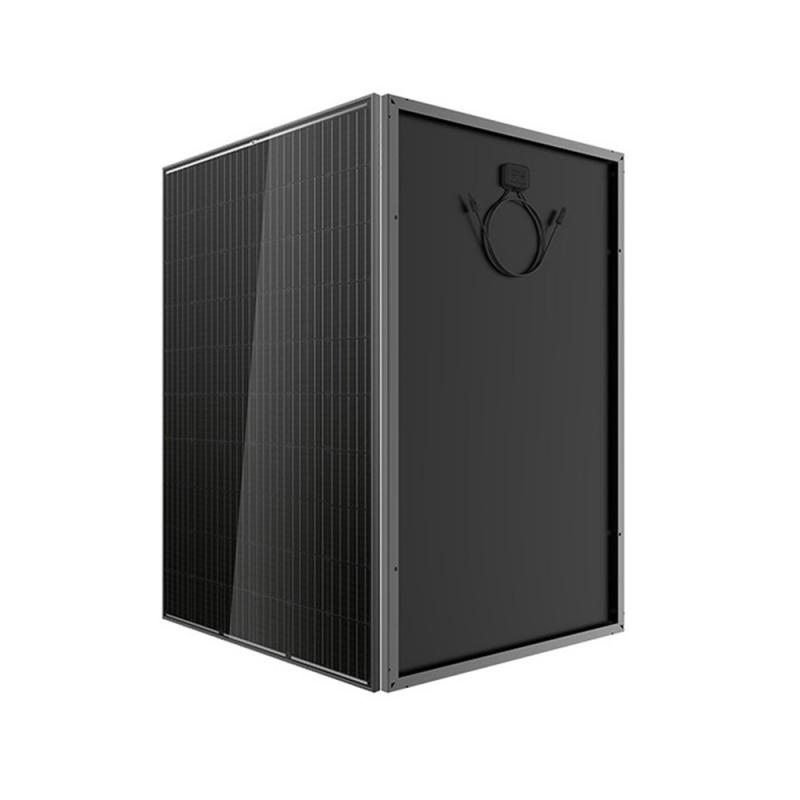

BoB or all black

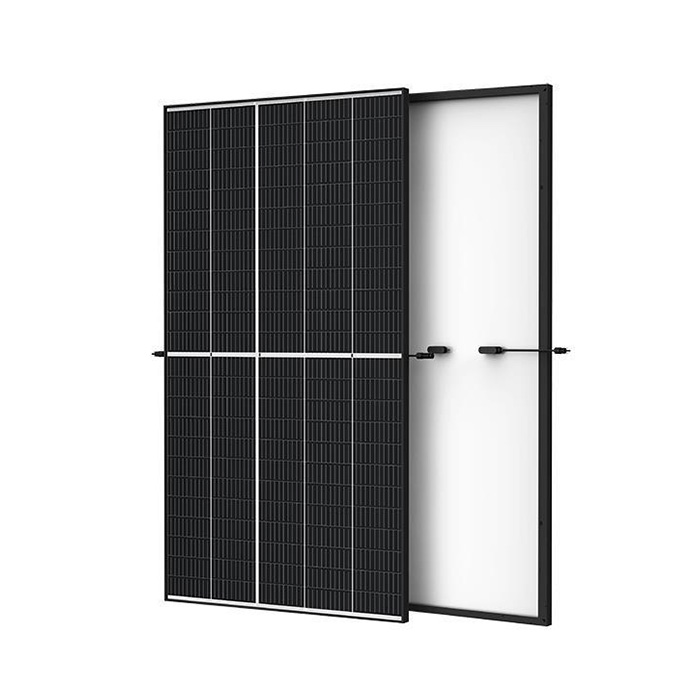

Black frame on white back

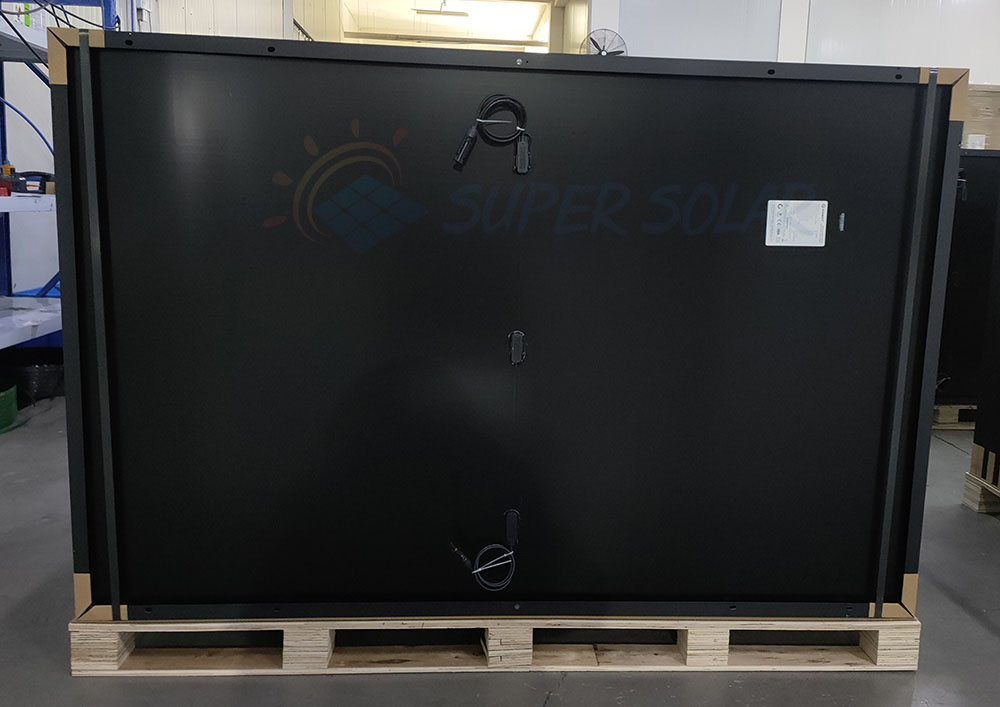

Black frame on black back

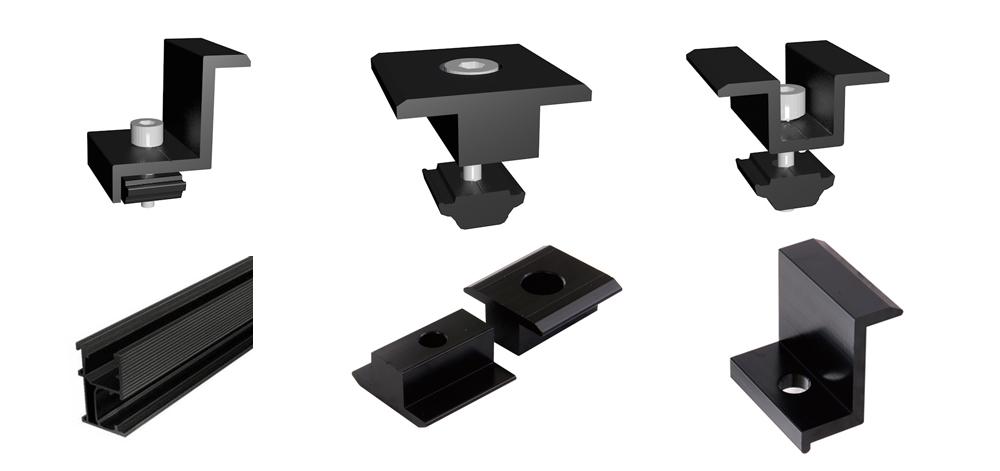

Optional black panel clamps or rails

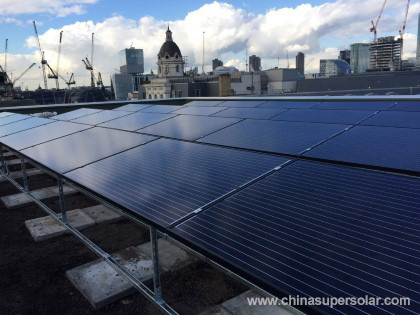

15KW on flat roof

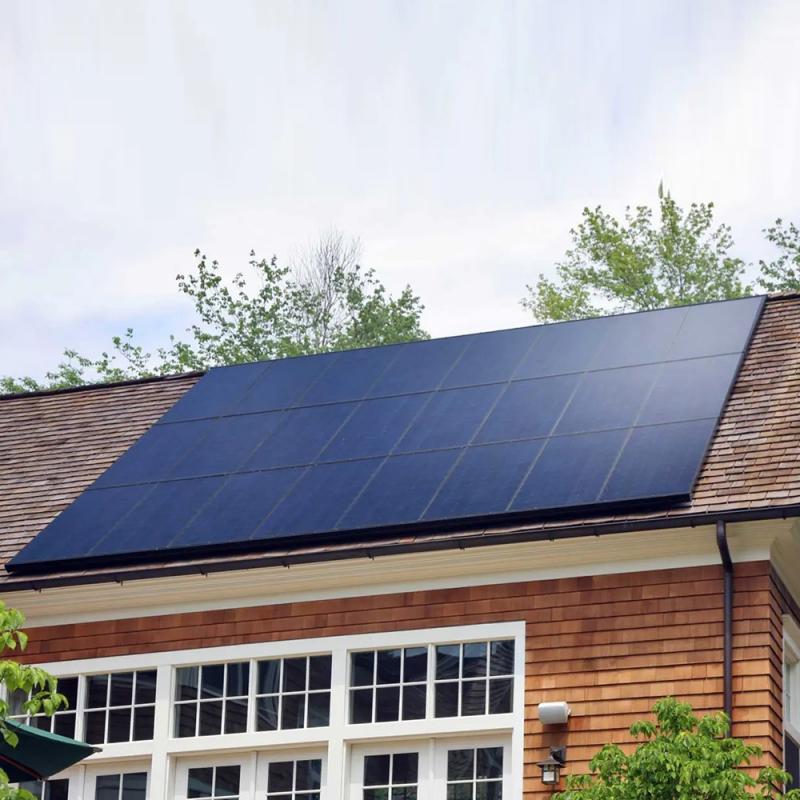

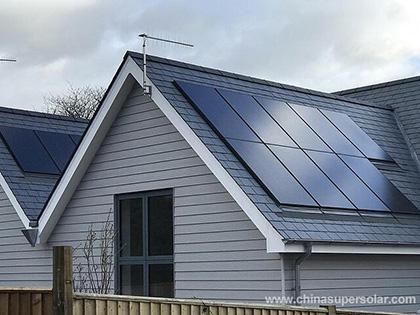

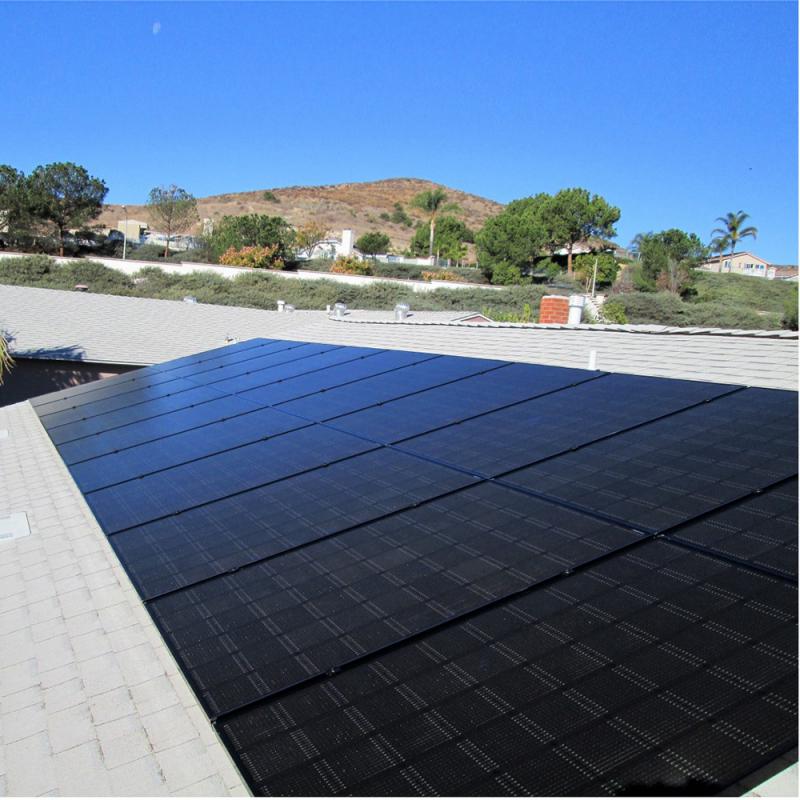

20KW on pitched roof

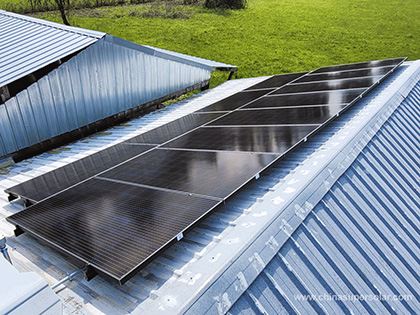

12KW on metal roof
200KW on the Ground
