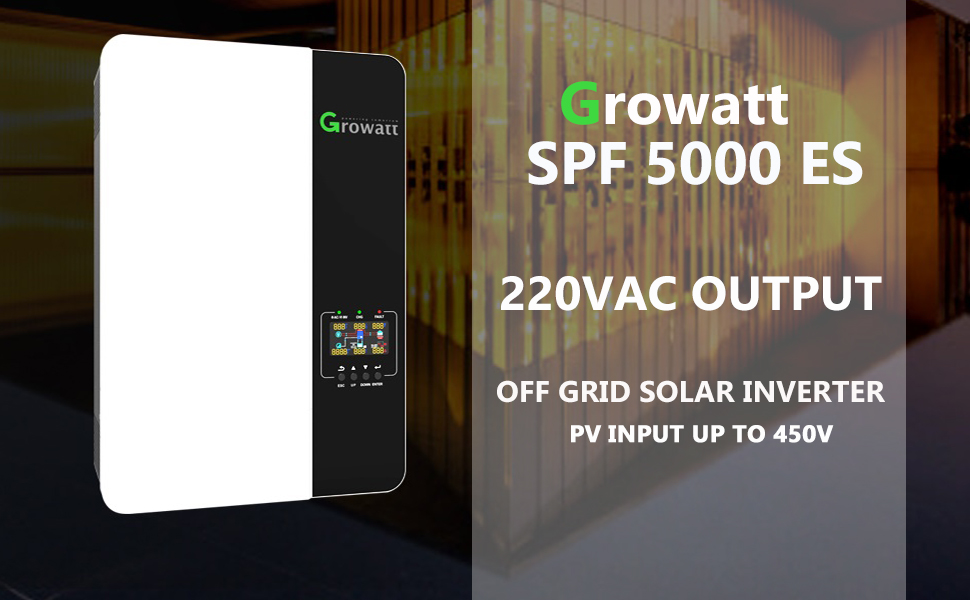

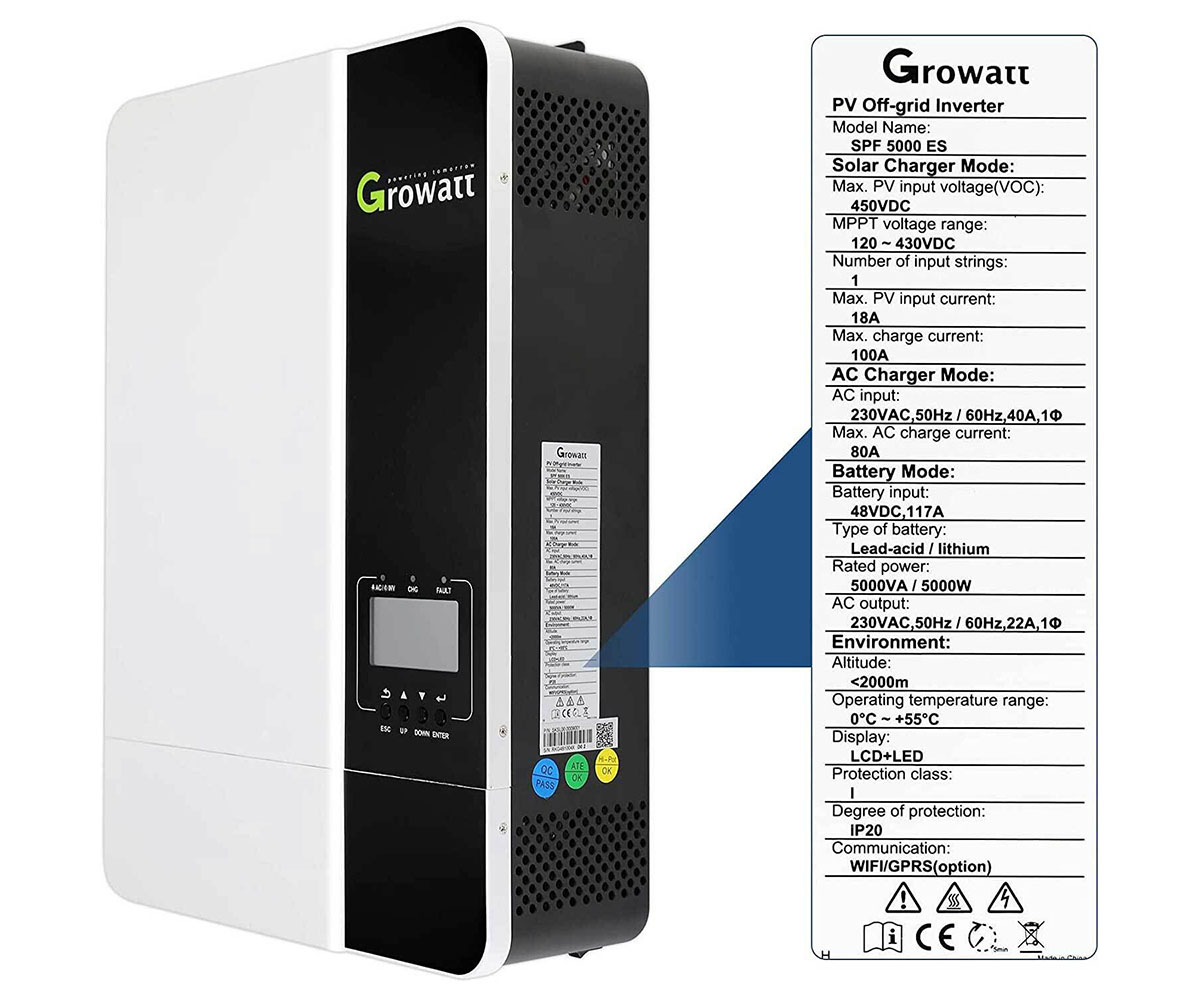

Growatt spf-5000es Solar Inverters for Sale

Growatt spf-5000es Solar Inverters for Sale

This is a multifunctional off grid solar inverter, integrated with a MPPT solar charge controller, a high frequency pure sine wave inverter and a UPS function module in one machine, which is perfect for off grid backup power and self-consumption applications.


  • Brand:

    Super Solar
  • Item No.:

    5000es
  • Payment:

    T/T,LC
  • Price range:

    5 - 100/$540
  • Price range:

    1 - 4/$550
  • Product origin:

    China
  • Goods_stock:

    1000
  • Product weight:

    6500g
  • Shipping port:

    Fujian Xiamen
  • Lead Time:

    5-15days
  • Product Details

  • Project Case

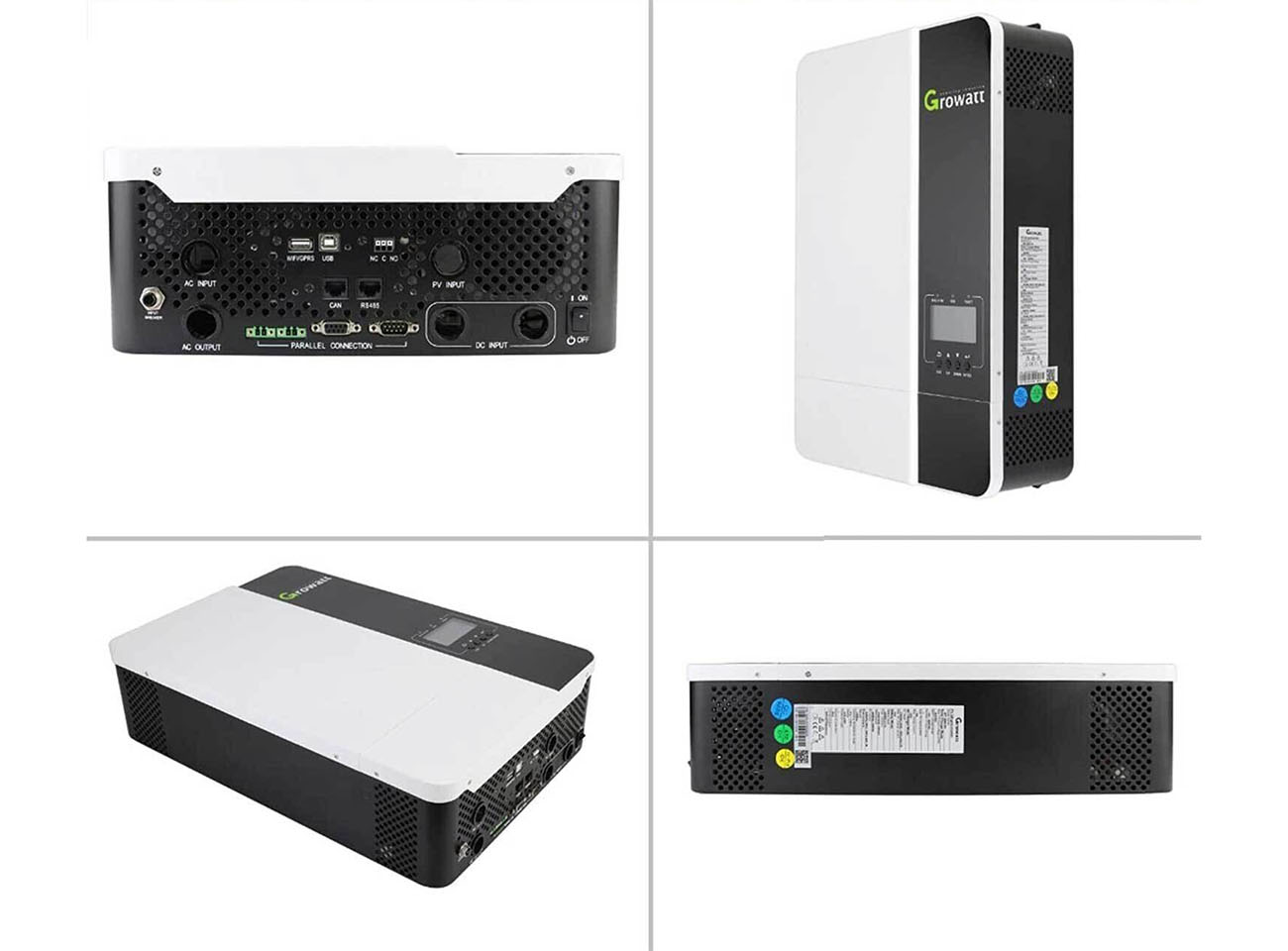

Growatt spf-5000es Solar Inverters for Sale


Product Information








Datasheet
SPF 3500 ES
SPF 5000 ES
Battery Voltage
48VDC
Battery Type
Lithium/Lead-acid
INVERTER OUTPUT
Rated Power
3500VA/ 3500W
5000VA/ 5000W
Parallel Capability
Yes, 6 units maximum
AC Voltage Regulation
230VAC ± 5% @ 50/60Hz
Surge Power
7000VA
10000VA
Efficiency (Peak)
93%
Waveform
Pure sine wave
Transfer Time
10ms typical, 20ms Max
SOLAR CHARGER
Maximum PV Array Power
4500W
6000W
MPPT Range @ Operating Voltage
120VDC ~ 430VDC
Number of Independent MPP Trackers/
1/1
Strings Per MPP Tracker
Maximum PV Array Open
450VDC
Circuit Voltage
Maximum Solar Charge Current
80A
100A
AC CHARGER
Charge Current
60A
80A
AC Input Voltage
230 VAC
Selectable Voltage Range
170-280 VAC (For Personal Computers) ;
90-280 VAC (For Home Appliances)
Frequency Range
50Hz/60Hz (Auto sensing)
PHYSICAL
Protection Degree
IP20
Dimension (W/H/D)
330/485/135mm
330/485/135mm
Net Weight
11.5kgs
12kgs
OPERATING ENVIRONMENT
Humidity
5% to 95% Relative Humidity(Non-condensing)
Altitude
<2000m
Operating Temperature
0°C - 55°C
Storage Temperature
-15°C - 60°C

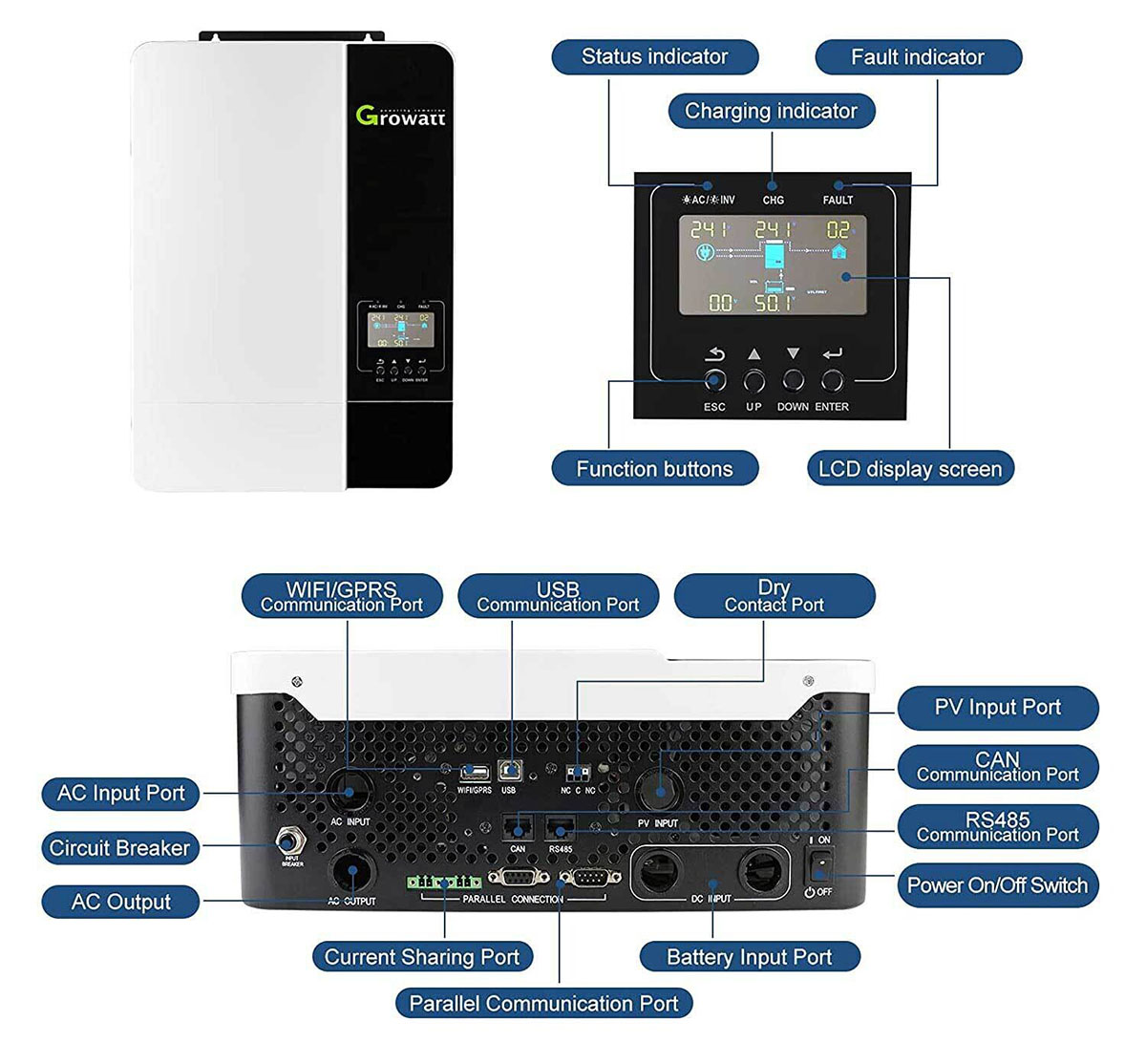

Features


▪ Integrated MPPT charge controller.

▪ Equalization charging function.

▪ Work with battery or without battery.

▪ Maximum PV input voltage up to 450VDC

▪ Configurable grid or solar input priority.

▪ Optional WIFI/ GPRS remote monitoring.

▪ Support parallel operation. for capacity expansion up to 30kW.

▪ PV and Grid power the load jointly if PV energy unsufficient.

▪ Flexibly schedule the Inverter charging and discharging time.

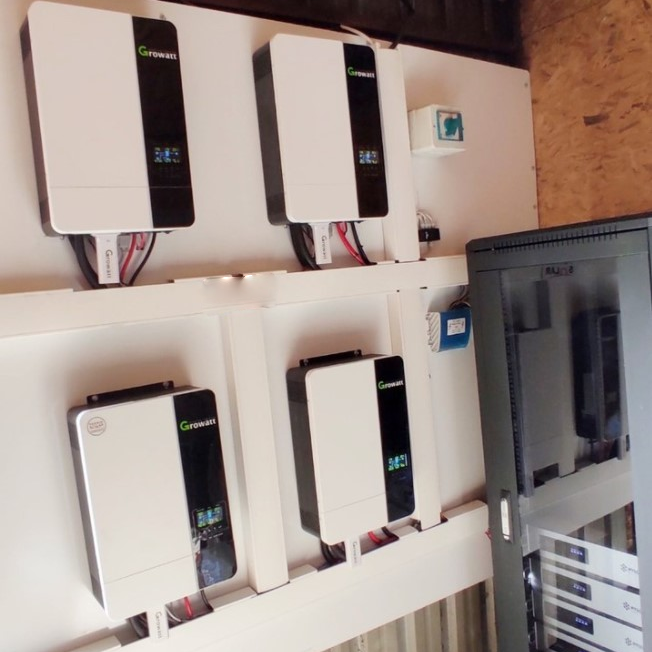

UP TO SIX UNIT PARALLEL
Parallel (Parallel operation up to 6 unit (only with battery connected)





Packing


Perfect packaging for easy transportation and safe shipping
Packing Details : carton box , wooden box and wooden pallet , 1unit per carton box
